Introduction

As cyber attacks targeting cloud infrastructure intensify in 2025, traditional perimeter-based security models prove inadequate against sophisticated threats. With over half of AWS enterprises having identities capable of escalating privileges to super admin roles without approval, implementing Zero Trust architecture has become a critical security imperative.

This comprehensive guide demonstrates how to build a robust Zero Trust implementation using AWS IAM, combining identity verification, network segmentation, and continuous validation to protect against modern security threats.

Current Landscape Statistics

Privilege Escalation Risk: More than 50% of AWS enterprises have hidden privilege escalation paths that can grant admin access without approval
Identity Compromise: 82% of data breaches in 2025 involved cloud data, with credential theft being the primary attack vector
Detection Gap: The average time to detect a cloud breach remains 277 days, emphasizing the need for continuous verification
Human Error Factor: 88% of cloud security breaches stem from human error, including improper access management and credential misuse
Cost of Compromise: AWS security breaches now average $150+ million in recovery costs, making prevention critical for business continuity

Zero Trust Architecture Fundamentals

Core Principles for AWS Implementation

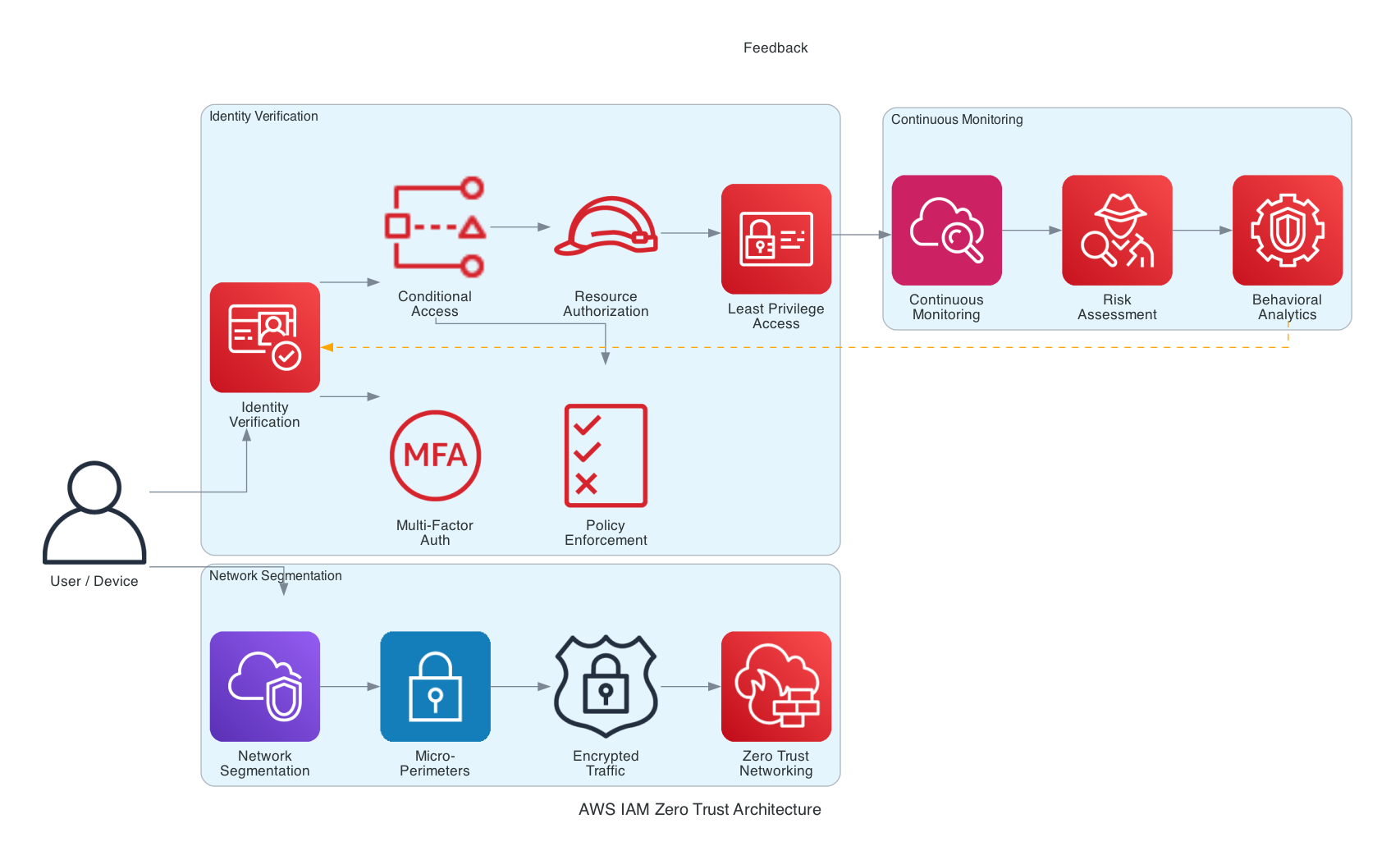

Zero Trust operates on the principle of “never trust, always verify,” fundamentally changing how we approach cloud security architecture:

graph TB
    A[User/Device] --> B[Identity Verification]
    B --> C[Conditional Access]
    C --> D[Resource Authorization]
    D --> E[Continuous Monitoring]
    E --> F[Risk Assessment]
    F --> B

    G[Network Segmentation] --> H[Micro-Perimeters]
    H --> I[Encrypted Traffic]
    I --> J[Zero Trust Networking]

    B --> K[Multi-Factor Authentication]
    C --> L[Policy Enforcement Points]
    D --> M[Least Privilege Access]
    E --> N[Behavioral Analytics]

AWS Zero Trust Components

Identity Layer:

AWS IAM Identity Center (SSO) for centralized authentication
IAM policies with conditional access controls
AWS Cognito for application user management
Active Directory integration via AWS Directory Service

Network Layer:

VPC with segmented subnets and security groups
AWS PrivateLink for service communication
VPC endpoints for secure service access
Network ACLs for subnet-level security

Application Layer:

Application Load Balancer with WAF integration
API Gateway with authentication and authorization
Lambda authorizers for custom access control
AWS AppConfig for dynamic security policies

Implementing Identity-Centric Zero Trust

IAM Identity Center Configuration


import boto3
import json
from datetime import datetime, timedelta
from typing import Dict, List, Optional

class ZeroTrustIdentityManager:
    def __init__(self):
        self.sso_admin = boto3.client('sso-admin')
        self.identitystore = boto3.client('identitystore')
        self.iam = boto3.client('iam')
        self.organizations = boto3.client('organizations')

    def setup_identity_center_instance(self) -> Dict:
        """Configure AWS IAM Identity Center for Zero Trust"""

        try:
            # Get or create Identity Center instance
            instances = self.sso_admin.list_instances()

            if instances['Instances']:
                instance_arn = instances['Instances'][0]['InstanceArn']
                identity_store_id = instances['Instances'][0]['IdentityStoreId']
            else:
                # Create new instance if none exists
                response = self.sso_admin.create_instance(
                    Name='ZeroTrustIdentityCenter',
                    Description='Zero Trust identity management for enterprise AWS access'
                )
                instance_arn = response['InstanceArn']
                identity_store_id = response['IdentityStoreId']

            # Configure identity source
            self.configure_identity_source(instance_arn)

            # Set up permission sets
            self.create_zero_trust_permission_sets(instance_arn)

            return {
                'instance_arn': instance_arn,
                'identity_store_id': identity_store_id,
                'status': 'configured'
            }

        except Exception as e:
            print(f"Failed to setup Identity Center: {str(e)}")
            return {'status': 'failed', 'error': str(e)}

    def configure_identity_source(self, instance_arn: str):
        """Configure external identity source integration"""

        # Configure Active Directory integration
        ad_config = {
            'DirectoryId': 'd-1234567890',  # Replace with actual directory ID
            'ConnectorArn': 'arn:aws:ds:region:account:connector/c-1234567890'
        }

        try:
            # Note: This is a simplified example
            # Actual implementation would use the Directory Service APIs
            print(f"Configured identity source for instance: {instance_arn}")

        except Exception as e:
            print(f"Failed to configure identity source: {str(e)}")

    def create_zero_trust_permission_sets(self, instance_arn: str) -> List[Dict]:
        """Create tiered permission sets following Zero Trust principles"""

        permission_sets = []

        # Read-Only Access Permission Set
        readonly_ps = self.create_permission_set(
            instance_arn=instance_arn,
            name='ZeroTrust-ReadOnly',
            description='Read-only access with conditional restrictions',
            session_duration='PT2H',  # 2 hours
            policies=[
                {
                    'type': 'managed',
                    'arn': 'arn:aws:iam::aws:policy/ReadOnlyAccess'
                }
            ],
            inline_policy=self.generate_conditional_readonly_policy()
        )
        permission_sets.append(readonly_ps)

        # Developer Access Permission Set
        developer_ps = self.create_permission_set(
            instance_arn=instance_arn,
            name='ZeroTrust-Developer',
            description='Developer access with time and resource restrictions',
            session_duration='PT4H',  # 4 hours
            policies=[
                {
                    'type': 'managed',
                    'arn': 'arn:aws:iam::aws:policy/PowerUserAccess'
                }
            ],
            inline_policy=self.generate_conditional_developer_policy()
        )
        permission_sets.append(developer_ps)

        # Security Admin Permission Set
        security_admin_ps = self.create_permission_set(
            instance_arn=instance_arn,
            name='ZeroTrust-SecurityAdmin',
            description='Security administration with enhanced monitoring',
            session_duration='PT1H',  # 1 hour
            policies=[
                {
                    'type': 'custom',
                    'policy': self.generate_security_admin_policy()
                }
            ],
            inline_policy=self.generate_security_admin_conditions()
        )
        permission_sets.append(security_admin_ps)

        # Emergency Break-Glass Permission Set
        breakglass_ps = self.create_permission_set(
            instance_arn=instance_arn,
            name='ZeroTrust-BreakGlass',
            description='Emergency access with extensive logging and approval',
            session_duration='PT30M',  # 30 minutes
            policies=[
                {
                    'type': 'managed',
                    'arn': 'arn:aws:iam::aws:policy/AdministratorAccess'
                }
            ],
            inline_policy=self.generate_breakglass_conditions()
        )
        permission_sets.append(breakglass_ps)

        return permission_sets

    def create_permission_set(self, instance_arn: str, name: str, description: str,
                             session_duration: str, policies: List[Dict],
                             inline_policy: Optional[Dict] = None) -> Dict:
        """Create individual permission set with Zero Trust controls"""

        try:
            # Create permission set
            response = self.sso_admin.create_permission_set(
                InstanceArn=instance_arn,
                Name=name,
                Description=description,
                SessionDuration=session_duration,
                RelayState='https://console.aws.amazon.com/'
            )

            permission_set_arn = response['PermissionSet']['PermissionSetArn']

            # Attach managed policies
            for policy in policies:
                if policy['type'] == 'managed':
                    self.sso_admin.attach_managed_policy_to_permission_set(
                        InstanceArn=instance_arn,
                        PermissionSetArn=permission_set_arn,
                        ManagedPolicyArn=policy['arn']
                    )
                elif policy['type'] == 'custom':
                    self.sso_admin.put_inline_policy_to_permission_set(
                        InstanceArn=instance_arn,
                        PermissionSetArn=permission_set_arn,
                        InlinePolicy=json.dumps(policy['policy'])
                    )

            # Add inline policy with conditions
            if inline_policy:
                self.sso_admin.put_inline_policy_to_permission_set(
                    InstanceArn=instance_arn,
                    PermissionSetArn=permission_set_arn,
                    InlinePolicy=json.dumps(inline_policy)
                )

            return {
                'name': name,
                'arn': permission_set_arn,
                'status': 'created'
            }

        except Exception as e:
            print(f"Failed to create permission set {name}: {str(e)}")
            return {'name': name, 'status': 'failed', 'error': str(e)}

    def generate_conditional_readonly_policy(self) -> Dict:
        """Generate conditional access policy for read-only users"""

        return {
            "Version": "2012-10-17",
            "Statement": [
                {
                    "Sid": "DenyOutsideBusinessHours",
                    "Effect": "Deny",
                    "Action": "*",
                    "Resource": "*",
                    "Condition": {
                        "DateGreaterThan": {
                            "aws:CurrentTime": "18:00Z"
                        }
                    }
                },
                {
                    "Sid": "DenyOutsideBusinessHours2",
                    "Effect": "Deny",
                    "Action": "*",
                    "Resource": "*",
                    "Condition": {
                        "DateLessThan": {
                            "aws:CurrentTime": "08:00Z"
                        }
                    }
                },
                {
                    "Sid": "RequireMFAForSensitiveActions",
                    "Effect": "Deny",
                    "Action": [
                        "iam:*",
                        "organizations:*",
                        "account:*"
                    ],
                    "Resource": "*",
                    "Condition": {
                        "BoolIfExists": {
                            "aws:MultiFactorAuthPresent": "false"
                        }
                    }
                },
                {
                    "Sid": "RestrictToApprovedRegions",
                    "Effect": "Deny",
                    "Action": "*",
                    "Resource": "*",
                    "Condition": {
                        "StringNotEquals": {
                            "aws:RequestedRegion": [
                                "us-east-1",
                                "us-west-2",
                                "eu-west-1"
                            ]
                        }
                    }
                },
                {
                    "Sid": "RequireSSLRequestsOnly",
                    "Effect": "Deny",
                    "Action": "s3:*",
                    "Resource": "*",
                    "Condition": {
                        "Bool": {
                            "aws:SecureTransport": "false"
                        }
                    }
                }
            ]
        }

    def generate_conditional_developer_policy(self) -> Dict:
        """Generate conditional access policy for developers"""

        return {
            "Version": "2012-10-17",
            "Statement": [
                {
                    "Sid": "DenyProductionAccess",
                    "Effect": "Deny",
                    "Action": "*",
                    "Resource": "*",
                    "Condition": {
                        "StringLike": {
                            "aws:PrincipalTag/Environment": ["prod", "production"]
                        }
                    }
                },
                {
                    "Sid": "RequireMFAForElevatedActions",
                    "Effect": "Deny",
                    "Action": [
                        "iam:CreateRole",
                        "iam:DeleteRole",
                        "iam:AttachRolePolicy",
                        "iam:DetachRolePolicy",
                        "ec2:TerminateInstances",
                        "rds:DeleteDBInstance",
                        "s3:DeleteBucket"
                    ],
                    "Resource": "*",
                    "Condition": {
                        "NumericLessThan": {
                            "aws:MultiFactorAuthAge": "3600"
                        }
                    }
                },
                {
                    "Sid": "RestrictResourceCreationByTags",
                    "Effect": "Deny",
                    "Action": [
                        "ec2:RunInstances",
                        "rds:CreateDBInstance",
                        "lambda:CreateFunction"
                    ],
                    "Resource": "*",
                    "Condition": {
                        "Null": {
                            "aws:RequestedRegion": "false"
                        },
                        "ForAllValues:StringNotLike": {
                            "aws:TagKeys": [
                                "Project",
                                "Environment",
                                "Owner"
                            ]
                        }
                    }
                }
            ]
        }

    def generate_security_admin_policy(self) -> Dict:
        """Generate policy for security administrators"""

        return {
            "Version": "2012-10-17",
            "Statement": [
                {
                    "Effect": "Allow",
                    "Action": [
                        "iam:*",
                        "organizations:*",
                        "securityhub:*",
                        "guardduty:*",
                        "cloudtrail:*",
                        "config:*",
                        "inspector2:*",
                        "access-analyzer:*",
                        "macie2:*"
                    ],
                    "Resource": "*"
                },
                {
                    "Effect": "Allow",
                    "Action": [
                        "ec2:*SecurityGroup*",
                        "ec2:*NetworkAcl*",
                        "ec2:*VpcEndpoint*"
                    ],
                    "Resource": "*"
                },
                {
                    "Effect": "Allow",
                    "Action": [
                        "kms:*",
                        "secretsmanager:*",
                        "ssm:*Parameter*"
                    ],
                    "Resource": "*"
                },
                {
                    "Effect": "Deny",
                    "Action": [
                        "iam:DeleteRole",
                        "iam:DetachRolePolicy",
                        "iam:DeleteUser",
                        "iam:DeleteGroup"
                    ],
                    "Resource": [
                        "arn:aws:iam::*:role/ZeroTrust-*",
                        "arn:aws:iam::*:role/aws-service-role/*"
                    ]
                }
            ]
        }

    def generate_security_admin_conditions(self) -> Dict:
        """Generate conditional access controls for security admins"""

        return {
            "Version": "2012-10-17",
            "Statement": [
                {
                    "Sid": "RequireStrongMFAForCriticalActions",
                    "Effect": "Deny",
                    "Action": [
                        "iam:CreateUser",
                        "iam:CreateRole",
                        "iam:AttachUserPolicy",
                        "iam:AttachRolePolicy",
                        "organizations:CreateAccount",
                        "organizations:InviteAccountToOrganization"
                    ],
                    "Resource": "*",
                    "Condition": {
                        "NumericGreaterThan": {
                            "aws:MultiFactorAuthAge": "1800"
                        }
                    }
                },
                {
                    "Sid": "RequireApprovalForBreakGlassAccess",
                    "Effect": "Deny",
                    "Action": [
                        "sso:CreatePermissionSet",
                        "sso:AttachManagedPolicyToPermissionSet",
                        "sso:PutInlinePolicyToPermissionSet"
                    ],
                    "Resource": "*",
                    "Condition": {
                        "StringLike": {
                            "aws:PrincipalTag/ApprovalRequired": "true"
                        }
                    }
                }
            ]
        }

    def generate_breakglass_conditions(self) -> Dict:
        """Generate strict conditions for break-glass access"""

        return {
            "Version": "2012-10-17",
            "Statement": [
                {
                    "Sid": "LogAllBreakGlassActions",
                    "Effect": "Allow",
                    "Action": "*",
                    "Resource": "*",
                    "Condition": {
                        "Bool": {
                            "aws:CloudTrailLogged": "true"
                        }
                    }
                },
                {
                    "Sid": "RequireJustificationTag",
                    "Effect": "Deny",
                    "Action": "*",
                    "Resource": "*",
                    "Condition": {
                        "Null": {
                            "aws:PrincipalTag/BreakGlassJustification": "true"
                        }
                    }
                },
                {
                    "Sid": "RestrictToEmergencyRegions",
                    "Effect": "Deny",
                    "Action": "*",
                    "Resource": "*",
                    "Condition": {
                        "StringNotEquals": {
                            "aws:RequestedRegion": [
                                "us-east-1",
                                "us-west-2"
                            ]
                        }
                    }
                }
            ]
        }

# Example usage and testing
identity_manager = ZeroTrustIdentityManager()

Advanced Conditional Access Implementation


import boto3
import json
from datetime import datetime, timezone
import ipaddress
from typing import Dict, List, Optional

class ConditionalAccessManager:
    def __init__(self):
        self.iam = boto3.client('iam')
        self.sso_admin = boto3.client('sso-admin')
        self.organizations = boto3.client('organizations')

        # Define trusted IP ranges for the organization
        self.trusted_ip_ranges = [
            '192.168.1.0/24',    # Corporate network
            '10.0.0.0/8',        # VPN ranges
            '172.16.0.0/12'      # Private networks
        ]

        # Define approved device certificate thumbprints
        self.approved_device_certs = [
            'sha256:1234567890abcdef...',
            'sha256:fedcba0987654321...'
        ]

    def create_adaptive_access_policy(self, risk_level: str) -> Dict:
        """Create adaptive access policy based on risk assessment"""

        base_policy = {
            "Version": "2012-10-17",
            "Statement": []
        }

        # Add statements based on risk level
        if risk_level == 'low':
            base_policy['Statement'].extend(self.get_low_risk_statements())
        elif risk_level == 'medium':
            base_policy['Statement'].extend(self.get_medium_risk_statements())
        elif risk_level == 'high':
            base_policy['Statement'].extend(self.get_high_risk_statements())

        return base_policy

    def get_low_risk_statements(self) -> List[Dict]:
        """Generate policy statements for low-risk scenarios"""

        return [
            {
                "Sid": "AllowTrustedNetworkAccess",
                "Effect": "Allow",
                "Action": "*",
                "Resource": "*",
                "Condition": {
                    "IpAddress": {
                        "aws:SourceIp": self.trusted_ip_ranges
                    }
                }
            },
            {
                "Sid": "RequireMFAForSensitiveActions",
                "Effect": "Deny",
                "Action": [
                    "iam:*",
                    "organizations:*",
                    "account:*"
                ],
                "Resource": "*",
                "Condition": {
                    "BoolIfExists": {
                        "aws:MultiFactorAuthPresent": "false"
                    }
                }
            }
        ]

    def get_medium_risk_statements(self) -> List[Dict]:
        """Generate policy statements for medium-risk scenarios"""

        return [
            {
                "Sid": "RequireStrongMFAForAllActions",
                "Effect": "Deny",
                "Action": "*",
                "Resource": "*",
                "Condition": {
                    "NumericGreaterThan": {
                        "aws:MultiFactorAuthAge": "7200"  # 2 hours
                    }
                }
            },
            {
                "Sid": "RestrictToBusinessHours",
                "Effect": "Deny",
                "Action": "*",
                "Resource": "*",
                "Condition": {
                    "DateGreaterThan": {
                        "aws:CurrentTime": "18:00Z"
                    }
                }
            },
            {
                "Sid": "RequireApprovedDeviceCertificate",
                "Effect": "Deny",
                "Action": "*",
                "Resource": "*",
                "Condition": {
                    "StringNotEquals": {
                        "aws:RequestTag/DeviceCertThumbprint": self.approved_device_certs
                    }
                }
            }
        ]

    def get_high_risk_statements(self) -> List[Dict]:
        """Generate policy statements for high-risk scenarios"""

        return [
            {
                "Sid": "DenyAllUntrustedAccess",
                "Effect": "Deny",
                "Action": "*",
                "Resource": "*",
                "Condition": {
                    "IpAddressIfExists": {
                        "aws:SourceIp": "0.0.0.0/0"
                    },
                    "StringNotEquals": {
                        "aws:SourceIp": self.trusted_ip_ranges
                    }
                }
            },
            {
                "Sid": "RequireRecentStrongMFA",
                "Effect": "Deny",
                "Action": "*",
                "Resource": "*",
                "Condition": {
                    "NumericGreaterThan": {
                        "aws:MultiFactorAuthAge": "1800"  # 30 minutes
                    }
                }
            },
            {
                "Sid": "RequireAdditionalApproval",
                "Effect": "Deny",
                "Action": [
                    "iam:*",
                    "organizations:*",
                    "ec2:TerminateInstances",
                    "rds:DeleteDBInstance",
                    "s3:DeleteBucket"
                ],
                "Resource": "*",
                "Condition": {
                    "StringNotEquals": {
                        "aws:PrincipalTag/EmergencyApproval": "granted"
                    }
                }
            }
        ]

    def assess_access_risk(self, user_context: Dict) -> str:
        """Assess risk level based on user context"""

        risk_score = 0

        # Check source IP
        source_ip = user_context.get('source_ip', '')
        if source_ip and not self.is_trusted_ip(source_ip):
            risk_score += 30

        # Check time of access
        access_time = datetime.fromisoformat(user_context.get('access_time', ''))
        if not self.is_business_hours(access_time):
            risk_score += 20

        # Check device compliance
        if not user_context.get('device_compliant', False):
            risk_score += 25

        # Check location anomaly
        if user_context.get('location_anomaly', False):
            risk_score += 35

        # Check recent failed attempts
        failed_attempts = user_context.get('recent_failed_attempts', 0)
        risk_score += min(failed_attempts * 10, 40)

        # Determine risk level
        if risk_score >= 70:
            return 'high'
        elif risk_score >= 40:
            return 'medium'
        else:
            return 'low'

    def is_trusted_ip(self, ip_address: str) -> bool:
        """Check if IP address is in trusted ranges"""

        try:
            ip = ipaddress.ip_address(ip_address)
            for trusted_range in self.trusted_ip_ranges:
                if ip in ipaddress.ip_network(trusted_range):
                    return True
            return False
        except:
            return False

    def is_business_hours(self, access_time: datetime) -> bool:
        """Check if access is during business hours"""

        # Convert to UTC if needed
        if access_time.tzinfo is None:
            access_time = access_time.replace(tzinfo=timezone.utc)

        # Business hours: 8 AM to 6 PM UTC
        hour = access_time.hour
        return 8 <= hour <= 18

    def implement_conditional_access(self, user_id: str, user_context: Dict) -> Dict:
        """Implement conditional access based on user context"""

        try:
            # Assess risk level
            risk_level = self.assess_access_risk(user_context)

            # Generate appropriate policy
            access_policy = self.create_adaptive_access_policy(risk_level)

            # Apply policy to user's session
            policy_name = f"ConditionalAccess-{user_id}-{int(datetime.now().timestamp())}"

            # Note: In practice, you would apply this to the user's session
            # This is a simplified example

            return {
                'user_id': user_id,
                'risk_level': risk_level,
                'policy_applied': policy_name,
                'status': 'success',
                'conditions': {
                    'mfa_required': risk_level in ['medium', 'high'],
                    'restricted_actions': risk_level == 'high',
                    'session_duration': self.get_session_duration(risk_level)
                }
            }

        except Exception as e:
            return {
                'user_id': user_id,
                'status': 'failed',
                'error': str(e)
            }

    def get_session_duration(self, risk_level: str) -> str:
        """Get appropriate session duration based on risk level"""

        duration_mapping = {
            'low': 'PT8H',      # 8 hours
            'medium': 'PT4H',   # 4 hours
            'high': 'PT1H'      # 1 hour
        }

        return duration_mapping.get(risk_level, 'PT4H')

# Example usage
conditional_access = ConditionalAccessManager()

Network-Level Zero Trust Implementation

VPC Zero Trust Architecture


import boto3
import json
from typing import Dict, List

class ZeroTrustNetworkManager:
    def __init__(self):
        self.ec2 = boto3.client('ec2')
        self.elbv2 = boto3.client('elbv2')
        self.route53 = boto3.client('route53')

    def create_zero_trust_vpc(self, vpc_name: str, cidr_block: str) -> Dict:
        """Create VPC with Zero Trust network architecture"""

        try:
            # Create VPC
            vpc_response = self.ec2.create_vpc(
                CidrBlock=cidr_block,
                TagSpecifications=[
                    {
                        'ResourceType': 'vpc',
                        'Tags': [
                            {'Key': 'Name', 'Value': vpc_name},
                            {'Key': 'ZeroTrust', 'Value': 'true'},
                            {'Key': 'Environment', 'Value': 'production'}
                        ]
                    }
                ]
            )

            vpc_id = vpc_response['Vpc']['VpcId']

            # Enable DNS support and hostnames
            self.ec2.modify_vpc_attribute(
                VpcId=vpc_id,
                EnableDnsSupport={'Value': True}
            )

            self.ec2.modify_vpc_attribute(
                VpcId=vpc_id,
                EnableDnsHostnames={'Value': True}
            )

            # Create segmented subnets
            subnets = self.create_segmented_subnets(vpc_id, cidr_block)

            # Create security groups with Zero Trust principles
            security_groups = self.create_zero_trust_security_groups(vpc_id)

            # Create VPC endpoints for secure service access
            vpc_endpoints = self.create_vpc_endpoints(vpc_id, subnets['private'])

            # Configure Network ACLs
            network_acls = self.configure_network_acls(vpc_id, subnets)

            return {
                'vpc_id': vpc_id,
                'subnets': subnets,
                'security_groups': security_groups,
                'vpc_endpoints': vpc_endpoints,
                'network_acls': network_acls,
                'status': 'created'
            }

        except Exception as e:
            return {'status': 'failed', 'error': str(e)}

    def create_segmented_subnets(self, vpc_id: str, vpc_cidr: str) -> Dict:
        """Create network segments following Zero Trust principles"""

        subnets = {
            'public': [],
            'private': [],
            'data': [],
            'management': []
        }

        # Define subnet configurations
        subnet_configs = [
            # Public subnets (NAT Gateways, Load Balancers)
            {'name': 'ZeroTrust-Public-1A', 'cidr': '10.0.1.0/24', 'az': 'us-east-1a', 'type': 'public'},
            {'name': 'ZeroTrust-Public-1B', 'cidr': '10.0.2.0/24', 'az': 'us-east-1b', 'type': 'public'},

            # Private subnets (Application tier)
            {'name': 'ZeroTrust-App-1A', 'cidr': '10.0.11.0/24', 'az': 'us-east-1a', 'type': 'private'},
            {'name': 'ZeroTrust-App-1B', 'cidr': '10.0.12.0/24', 'az': 'us-east-1b', 'type': 'private'},

            # Data subnets (Database tier)
            {'name': 'ZeroTrust-Data-1A', 'cidr': '10.0.21.0/24', 'az': 'us-east-1a', 'type': 'data'},
            {'name': 'ZeroTrust-Data-1B', 'cidr': '10.0.22.0/24', 'az': 'us-east-1b', 'type': 'data'},

            # Management subnets (Bastion, monitoring)
            {'name': 'ZeroTrust-Mgmt-1A', 'cidr': '10.0.31.0/24', 'az': 'us-east-1a', 'type': 'management'},
            {'name': 'ZeroTrust-Mgmt-1B', 'cidr': '10.0.32.0/24', 'az': 'us-east-1b', 'type': 'management'}
        ]

        for config in subnet_configs:
            try:
                response = self.ec2.create_subnet(
                    VpcId=vpc_id,
                    CidrBlock=config['cidr'],
                    AvailabilityZone=config['az'],
                    TagSpecifications=[
                        {
                            'ResourceType': 'subnet',
                            'Tags': [
                                {'Key': 'Name', 'Value': config['name']},
                                {'Key': 'Type', 'Value': config['type']},
                                {'Key': 'ZeroTrust', 'Value': 'true'}
                            ]
                        }
                    ]
                )

                subnet_id = response['Subnet']['SubnetId']
                subnets[config['type']].append(subnet_id)

                # Enable auto-assign public IP for public subnets
                if config['type'] == 'public':
                    self.ec2.modify_subnet_attribute(
                        SubnetId=subnet_id,
                        MapPublicIpOnLaunch={'Value': True}
                    )

            except Exception as e:
                print(f"Failed to create subnet {config['name']}: {str(e)}")

        return subnets

    def create_zero_trust_security_groups(self, vpc_id: str) -> Dict:
        """Create security groups with Zero Trust principles"""

        security_groups = {}

        # Web tier security group
        web_sg = self.create_security_group(
            vpc_id=vpc_id,
            name='ZeroTrust-Web-SG',
            description='Web tier with restricted access',
            rules=[
                {
                    'type': 'ingress',
                    'protocol': 'tcp',
                    'port': 443,
                    'source': '0.0.0.0/0',
                    'description': 'HTTPS from anywhere'
                },
                {
                    'type': 'ingress',
                    'protocol': 'tcp',
                    'port': 80,
                    'source': '0.0.0.0/0',
                    'description': 'HTTP redirect to HTTPS'
                }
            ]
        )
        security_groups['web'] = web_sg

        # Application tier security group
        app_sg = self.create_security_group(
            vpc_id=vpc_id,
            name='ZeroTrust-App-SG',
            description='Application tier with web tier access only',
            rules=[
                {
                    'type': 'ingress',
                    'protocol': 'tcp',
                    'port': 8080,
                    'source_sg': web_sg,
                    'description': 'App port from web tier'
                }
            ]
        )
        security_groups['app'] = app_sg

        # Database tier security group
        db_sg = self.create_security_group(
            vpc_id=vpc_id,
            name='ZeroTrust-DB-SG',
            description='Database tier with app tier access only',
            rules=[
                {
                    'type': 'ingress',
                    'protocol': 'tcp',
                    'port': 5432,
                    'source_sg': app_sg,
                    'description': 'PostgreSQL from app tier'
                },
                {
                    'type': 'ingress',
                    'protocol': 'tcp',
                    'port': 3306,
                    'source_sg': app_sg,
                    'description': 'MySQL from app tier'
                }
            ]
        )
        security_groups['database'] = db_sg

        # Management tier security group
        mgmt_sg = self.create_security_group(
            vpc_id=vpc_id,
            name='ZeroTrust-Mgmt-SG',
            description='Management access with strict controls',
            rules=[
                {
                    'type': 'ingress',
                    'protocol': 'tcp',
                    'port': 22,
                    'source': '10.0.31.0/24',  # Management subnet only
                    'description': 'SSH from management subnet'
                },
                {
                    'type': 'ingress',
                    'protocol': 'tcp',
                    'port': 3389,
                    'source': '10.0.31.0/24',  # Management subnet only
                    'description': 'RDP from management subnet'
                }
            ]
        )
        security_groups['management'] = mgmt_sg

        return security_groups

    def create_security_group(self, vpc_id: str, name: str, description: str, rules: List[Dict]) -> str:
        """Create individual security group with specified rules"""

        try:
            # Create security group
            response = self.ec2.create_security_group(
                GroupName=name,
                Description=description,
                VpcId=vpc_id,
                TagSpecifications=[
                    {
                        'ResourceType': 'security-group',
                        'Tags': [
                            {'Key': 'Name', 'Value': name},
                            {'Key': 'ZeroTrust', 'Value': 'true'}
                        ]
                    }
                ]
            )

            sg_id = response['GroupId']

            # Add ingress rules
            for rule in rules:
                if rule['type'] == 'ingress':
                    if 'source_sg' in rule:
                        # Security group source
                        self.ec2.authorize_security_group_ingress(
                            GroupId=sg_id,
                            IpPermissions=[
                                {
                                    'IpProtocol': rule['protocol'],
                                    'FromPort': rule['port'],
                                    'ToPort': rule['port'],
                                    'UserIdGroupPairs': [
                                        {
                                            'GroupId': rule['source_sg'],
                                            'Description': rule['description']
                                        }
                                    ]
                                }
                            ]
                        )
                    else:
                        # CIDR source
                        self.ec2.authorize_security_group_ingress(
                            GroupId=sg_id,
                            IpPermissions=[
                                {
                                    'IpProtocol': rule['protocol'],
                                    'FromPort': rule['port'],
                                    'ToPort': rule['port'],
                                    'IpRanges': [
                                        {
                                            'CidrIp': rule['source'],
                                            'Description': rule['description']
                                        }
                                    ]
                                }
                            ]
                        )

            return sg_id

        except Exception as e:
            print(f"Failed to create security group {name}: {str(e)}")
            return ''

    def create_vpc_endpoints(self, vpc_id: str, private_subnets: List[str]) -> Dict:
        """Create VPC endpoints for secure service access"""

        endpoints = {}

        # S3 Gateway endpoint
        try:
            s3_endpoint = self.ec2.create_vpc_endpoint(
                VpcId=vpc_id,
                ServiceName='com.amazonaws.us-east-1.s3',
                VpcEndpointType='Gateway',
                PolicyDocument=json.dumps({
                    "Version": "2012-10-17",
                    "Statement": [
                        {
                            "Effect": "Allow",
                            "Principal": "*",
                            "Action": [
                                "s3:GetObject",
                                "s3:PutObject",
                                "s3:ListBucket"
                            ],
                            "Resource": "*",
                            "Condition": {
                                "StringEquals": {
                                    "aws:PrincipalTag/ZeroTrustVerified": "true"
                                }
                            }
                        }
                    ]
                })
            )
            endpoints['s3'] = s3_endpoint['VpcEndpoint']['VpcEndpointId']
        except Exception as e:
            print(f"Failed to create S3 endpoint: {str(e)}")

        # Interface endpoints for AWS services
        interface_services = [
            'ec2',
            'ssm',
            'ssmmessages',
            'ec2messages',
            'kms',
            'secretsmanager',
            'monitoring',
            'logs'
        ]

        for service in interface_services:
            try:
                endpoint = self.ec2.create_vpc_endpoint(
                    VpcId=vpc_id,
                    ServiceName=f'com.amazonaws.us-east-1.{service}',
                    VpcEndpointType='Interface',
                    SubnetIds=private_subnets,
                    PolicyDocument=json.dumps({
                        "Version": "2012-10-17",
                        "Statement": [
                            {
                                "Effect": "Allow",
                                "Principal": "*",
                                "Action": "*",
                                "Resource": "*",
                                "Condition": {
                                    "StringEquals": {
                                        "aws:PrincipalTag/ZeroTrustVerified": "true"
                                    }
                                }
                            }
                        ]
                    })
                )
                endpoints[service] = endpoint['VpcEndpoint']['VpcEndpointId']
            except Exception as e:
                print(f"Failed to create {service} endpoint: {str(e)}")

        return endpoints

    def configure_network_acls(self, vpc_id: str, subnets: Dict) -> Dict:
        """Configure Network ACLs for additional layer of security"""

        network_acls = {}

        # Create restrictive NACL for data tier
        try:
            data_nacl = self.ec2.create_network_acl(
                VpcId=vpc_id,
                TagSpecifications=[
                    {
                        'ResourceType': 'network-acl',
                        'Tags': [
                            {'Key': 'Name', 'Value': 'ZeroTrust-Data-NACL'},
                            {'Key': 'Tier', 'Value': 'data'}
                        ]
                    }
                ]
            )

            nacl_id = data_nacl['NetworkAcl']['NetworkAclId']

            # Add restrictive rules for data tier
            self.add_nacl_rules(nacl_id, 'data')

            # Associate with data subnets
            for subnet_id in subnets['data']:
                self.ec2.associate_network_acl(
                    NetworkAclId=nacl_id,
                    SubnetId=subnet_id
                )

            network_acls['data'] = nacl_id

        except Exception as e:
            print(f"Failed to create data tier NACL: {str(e)}")

        return network_acls

    def add_nacl_rules(self, nacl_id: str, tier: str):
        """Add appropriate NACL rules based on tier"""

        if tier == 'data':
            # Allow inbound database traffic from app tier
            rules = [
                {
                    'rule_number': 100,
                    'protocol': '6',  # TCP
                    'rule_action': 'allow',
                    'port_range': {'From': 5432, 'To': 5432},
                    'cidr_block': '10.0.11.0/24'  # App subnet 1A
                },
                {
                    'rule_number': 110,
                    'protocol': '6',  # TCP
                    'rule_action': 'allow',
                    'port_range': {'From': 5432, 'To': 5432},
                    'cidr_block': '10.0.12.0/24'  # App subnet 1B
                },
                {
                    'rule_number': 200,
                    'protocol': '6',  # TCP
                    'rule_action': 'allow',
                    'port_range': {'From': 1024, 'To': 65535},
                    'cidr_block': '0.0.0.0/0'  # Ephemeral ports for responses
                }
            ]

            for rule in rules:
                try:
                    self.ec2.create_network_acl_entry(
                        NetworkAclId=nacl_id,
                        RuleNumber=rule['rule_number'],
                        Protocol=rule['protocol'],
                        RuleAction=rule['rule_action'],
                        PortRange=rule['port_range'],
                        CidrBlock=rule['cidr_block']
                    )
                except Exception as e:
                    print(f"Failed to create NACL rule {rule['rule_number']}: {str(e)}")

# Example usage
network_manager = ZeroTrustNetworkManager()

Continuous Verification and Monitoring

Real-Time Access Monitoring


import boto3
import json
from datetime import datetime, timezone, timedelta
from typing import Dict, List, Optional

class ZeroTrustMonitoringSystem:
    def __init__(self):
        self.cloudtrail = boto3.client('cloudtrail')
        self.cloudwatch = boto3.client('cloudwatch')
        self.sns = boto3.client('sns')
        self.lambda_client = boto3.client('lambda')

    def setup_continuous_monitoring(self) -> Dict:
        """Setup continuous monitoring for Zero Trust validation"""

        monitoring_config = {
            'access_patterns': self.setup_access_pattern_monitoring(),
            'privilege_escalation': self.setup_privilege_escalation_monitoring(),
            'anomaly_detection': self.setup_anomaly_detection(),
            'compliance_monitoring': self.setup_compliance_monitoring()
        }

        return monitoring_config

    def setup_access_pattern_monitoring(self) -> Dict:
        """Monitor access patterns for anomalies"""

        try:
            # Create CloudWatch custom metrics
            pattern_metrics = [
                'ZeroTrust/AccessPatterns/UnusualLoginTimes',
                'ZeroTrust/AccessPatterns/GeographicAnomalies',
                'ZeroTrust/AccessPatterns/DeviceAnomalies',
                'ZeroTrust/AccessPatterns/VelocityAnomalies'
            ]

            for metric_name in pattern_metrics:
                self.cloudwatch.put_metric_alarm(
                    AlarmName=f"{metric_name.replace('/', '-')}-Alarm",
                    ComparisonOperator='GreaterThanThreshold',
                    EvaluationPeriods=2,
                    MetricName=metric_name.split('/')[-1],
                    Namespace='ZeroTrust/AccessPatterns',
                    Period=300,  # 5 minutes
                    Statistic='Sum',
                    Threshold=5.0,
                    ActionsEnabled=True,
                    AlarmActions=[
                        'arn:aws:sns:us-east-1:123456789012:zerotrust-alerts'
                    ],
                    AlarmDescription=f'Alarm for {metric_name} anomalies'
                )

            return {
                'status': 'configured',
                'metrics': pattern_metrics
            }

        except Exception as e:
            return {'status': 'failed', 'error': str(e)}

    def setup_privilege_escalation_monitoring(self) -> Dict:
        """Monitor for privilege escalation attempts"""

        try:
            # Define privilege escalation indicators
            escalation_patterns = [
                'AssumeRole',
                'CreateRole',
                'AttachRolePolicy',
                'AttachUserPolicy',
                'PutUserPolicy',
                'PutRolePolicy',
                'CreateUser',
                'AddUserToGroup'
            ]

            # Create CloudWatch Logs metric filters
            metric_filters = []

            for pattern in escalation_patterns:
                filter_name = f"ZeroTrust-PrivEsc-{pattern}"

                try:
                    self.cloudwatch.put_metric_filter(
                        logGroupName='/aws/cloudtrail/security-monitoring',
                        filterName=filter_name,
                        filterPattern=f'{{ $.eventName = "{pattern}" }}',
                        metricTransformations=[
                            {
                                'metricName': f'PrivilegeEscalation-{pattern}',
                                'metricNamespace': 'ZeroTrust/Security',
                                'metricValue': '1',
                                'defaultValue': 0
                            }
                        ]
                    )

                    metric_filters.append(filter_name)

                except Exception as e:
                    print(f"Failed to create metric filter for {pattern}: {str(e)}")

            return {
                'status': 'configured',
                'metric_filters': metric_filters
            }

        except Exception as e:
            return {'status': 'failed', 'error': str(e)}

    def setup_anomaly_detection(self) -> Dict:
        """Setup ML-based anomaly detection"""

        try:
            # Create CloudWatch anomaly detectors
            anomaly_detectors = []

            metrics_to_monitor = [
                {
                    'namespace': 'ZeroTrust/AccessPatterns',
                    'metric_name': 'LoginAttempts',
                    'dimensions': [{'Name': 'UserType', 'Value': 'Human'}]
                },
                {
                    'namespace': 'ZeroTrust/Security',
                    'metric_name': 'FailedAuthentications',
                    'dimensions': [{'Name': 'AuthMethod', 'Value': 'MFA'}]
                },
                {
                    'namespace': 'AWS/Lambda',
                    'metric_name': 'Invocations',
                    'dimensions': [{'Name': 'FunctionName', 'Value': 'zerotrust-validator'}]
                }
            ]

            for metric in metrics_to_monitor:
                detector_response = self.cloudwatch.put_anomaly_detector(
                    Namespace=metric['namespace'],
                    MetricName=metric['metric_name'],
                    Dimensions=metric['dimensions'],
                    Stat='Average'
                )

                anomaly_detectors.append({
                    'namespace': metric['namespace'],
                    'metric': metric['metric_name'],
                    'status': 'active'
                })

            return {
                'status': 'configured',
                'detectors': anomaly_detectors
            }

        except Exception as e:
            return {'status': 'failed', 'error': str(e)}

    def setup_compliance_monitoring(self) -> Dict:
        """Setup compliance monitoring for Zero Trust policies"""

        try:
            # Monitor key compliance indicators
            compliance_metrics = [
                {
                    'name': 'MFACompliance',
                    'description': 'Percentage of logins using MFA',
                    'threshold': 95.0
                },
                {
                    'name': 'SessionDurationCompliance',
                    'description': 'Sessions exceeding policy duration',
                    'threshold': 5.0
                },
                {
                    'name': 'GeographicPolicyCompliance',
                    'description': 'Access from unapproved locations',
                    'threshold': 1.0
                },
                {
                    'name': 'DeviceComplianceRate',
                    'description': 'Access from compliant devices',
                    'threshold': 98.0
                }
            ]

            for metric in compliance_metrics:
                self.cloudwatch.put_metric_alarm(
                    AlarmName=f"ZeroTrust-Compliance-{metric['name']}",
                    ComparisonOperator='LessThanThreshold',
                    EvaluationPeriods=3,
                    MetricName=metric['name'],
                    Namespace='ZeroTrust/Compliance',
                    Period=3600,  # 1 hour
                    Statistic='Average',
                    Threshold=metric['threshold'],
                    ActionsEnabled=True,
                    AlarmActions=[
                        'arn:aws:sns:us-east-1:123456789012:compliance-alerts'
                    ],
                    AlarmDescription=f"Compliance alarm for {metric['description']}"
                )

            return {
                'status': 'configured',
                'compliance_metrics': [m['name'] for m in compliance_metrics]
            }

        except Exception as e:
            return {'status': 'failed', 'error': str(e)}

    def analyze_access_request(self, access_request: Dict) -> Dict:
        """Analyze access request for Zero Trust compliance"""

        analysis_result = {
            'request_id': access_request.get('request_id'),
            'user_id': access_request.get('user_id'),
            'timestamp': datetime.now(timezone.utc).isoformat(),
            'risk_score': 0,
            'violations': [],
            'recommendations': [],
            'decision': 'pending'
        }

        # Check MFA compliance
        if not access_request.get('mfa_verified', False):
            analysis_result['risk_score'] += 30
            analysis_result['violations'].append('MFA not verified')
            analysis_result['recommendations'].append('Require MFA verification')

        # Check device compliance
        if not access_request.get('device_compliant', False):
            analysis_result['risk_score'] += 25
            analysis_result['violations'].append('Device not compliant')
            analysis_result['recommendations'].append('Use compliant device')

        # Check geographic location
        if access_request.get('location_anomaly', False):
            analysis_result['risk_score'] += 20
            analysis_result['violations'].append('Unusual geographic location')
            analysis_result['recommendations'].append('Verify location and provide justification')

        # Check time-based access
        access_time = datetime.fromisoformat(access_request.get('timestamp', ''))
        if not self.is_business_hours(access_time):
            analysis_result['risk_score'] += 15
            analysis_result['violations'].append('Access outside business hours')
            analysis_result['recommendations'].append('Provide justification for after-hours access')

        # Check privilege level
        requested_permissions = access_request.get('requested_permissions', [])
        if self.has_high_privilege_actions(requested_permissions):
            analysis_result['risk_score'] += 25
            analysis_result['violations'].append('High privilege actions requested')
            analysis_result['recommendations'].append('Use least privilege principles')

        # Determine decision based on risk score
        if analysis_result['risk_score'] >= 70:
            analysis_result['decision'] = 'deny'
        elif analysis_result['risk_score'] >= 40:
            analysis_result['decision'] = 'conditional_allow'
        else:
            analysis_result['decision'] = 'allow'

        # Log analysis for monitoring
        self.log_access_analysis(analysis_result)

        return analysis_result

    def is_business_hours(self, access_time: datetime) -> bool:
        """Check if access is during approved business hours"""

        if access_time.tzinfo is None:
            access_time = access_time.replace(tzinfo=timezone.utc)

        # Business hours: 7 AM to 7 PM UTC, Monday to Friday
        hour = access_time.hour
        weekday = access_time.weekday()

        return (7 <= hour <= 19) and (weekday < 5)

    def has_high_privilege_actions(self, permissions: List[str]) -> bool:
        """Check if requested permissions include high-privilege actions"""

        high_privilege_patterns = [
            'iam:*',
            '*:*',
            'organizations:*',
            'account:*',
            'iam:CreateRole',
            'iam:AttachRolePolicy',
            'iam:CreateUser',
            'iam:DeleteRole',
            'iam:DeleteUser',
            'ec2:TerminateInstances',
            'rds:DeleteDBInstance',
            's3:DeleteBucket'
        ]

        for permission in permissions:
            for pattern in high_privilege_patterns:
                if pattern in permission:
                    return True

        return False

    def log_access_analysis(self, analysis_result: Dict):
        """Log access analysis results for monitoring and compliance"""

        try:
            # Put custom metric for risk score
            self.cloudwatch.put_metric_data(
                Namespace='ZeroTrust/AccessAnalysis',
                MetricData=[
                    {
                        'MetricName': 'RiskScore',
                        'Value': analysis_result['risk_score'],
                        'Unit': 'None',
                        'Dimensions': [
                            {
                                'Name': 'Decision',
                                'Value': analysis_result['decision']
                            }
                        ]
                    },
                    {
                        'MetricName': 'ViolationCount',
                        'Value': len(analysis_result['violations']),
                        'Unit': 'Count'
                    }
                ]
            )

            # Log detailed analysis result
            print(f"Access analysis logged: {json.dumps(analysis_result, indent=2)}")

        except Exception as e:
            print(f"Failed to log access analysis: {str(e)}")

# Example usage
monitoring_system = ZeroTrustMonitoringSystem()

CloudFormation Template for Complete Zero Trust Infrastructure


AWSTemplateFormatVersion: '2010-09-09'
Description: 'Complete AWS Zero Trust Architecture Implementation'

Parameters:
  VpcCidr:
    Type: String
    Default: '10.0.0.0/16'
    Description: CIDR block for the Zero Trust VPC

  IdentityCenterInstanceArn:
    Type: String
    Description: ARN of existing IAM Identity Center instance

  NotificationEmail:
    Type: String
    Description: Email for security notifications
    Default: security@example.com

Resources:
  # VPC and Network Infrastructure
  ZeroTrustVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VpcCidr
      EnableDnsHostnames: true
      EnableDnsSupport: true
      Tags:
        - Key: Name
          Value: ZeroTrust-VPC
        - Key: ZeroTrust
          Value: 'true'

  # Internet Gateway
  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: ZeroTrust-IGW

  AttachGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref ZeroTrustVPC
      InternetGatewayId: !Ref InternetGateway

  # Public Subnets
  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref ZeroTrustVPC
      CidrBlock: !Select [0, !Cidr [!Ref VpcCidr, 8, 8]]
      AvailabilityZone: !Select [0, !GetAZs '']
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: ZeroTrust-Public-1A
        - Key: Type
          Value: public

  PublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref ZeroTrustVPC
      CidrBlock: !Select [1, !Cidr [!Ref VpcCidr, 8, 8]]
      AvailabilityZone: !Select [1, !GetAZs '']
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: ZeroTrust-Public-1B
        - Key: Type
          Value: public

  # Private Subnets
  PrivateSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref ZeroTrustVPC
      CidrBlock: !Select [2, !Cidr [!Ref VpcCidr, 8, 8]]
      AvailabilityZone: !Select [0, !GetAZs '']
      Tags:
        - Key: Name
          Value: ZeroTrust-Private-1A
        - Key: Type
          Value: private

  PrivateSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref ZeroTrustVPC
      CidrBlock: !Select [3, !Cidr [!Ref VpcCidr, 8, 8]]
      AvailabilityZone: !Select [1, !GetAZs '']
      Tags:
        - Key: Name
          Value: ZeroTrust-Private-1B
        - Key: Type
          Value: private

  # Data Subnets
  DataSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref ZeroTrustVPC
      CidrBlock: !Select [4, !Cidr [!Ref VpcCidr, 8, 8]]
      AvailabilityZone: !Select [0, !GetAZs '']
      Tags:
        - Key: Name
          Value: ZeroTrust-Data-1A
        - Key: Type
          Value: data

  DataSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref ZeroTrustVPC
      CidrBlock: !Select [5, !Cidr [!Ref VpcCidr, 8, 8]]
      AvailabilityZone: !Select [1, !GetAZs '']
      Tags:
        - Key: Name
          Value: ZeroTrust-Data-1B
        - Key: Type
          Value: data

  # NAT Gateways
  NATGateway1EIP:
    Type: AWS::EC2::EIP
    DependsOn: AttachGateway
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: ZeroTrust-NAT-1A-EIP

  NATGateway2EIP:
    Type: AWS::EC2::EIP
    DependsOn: AttachGateway
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: ZeroTrust-NAT-1B-EIP

  NATGateway1:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NATGateway1EIP.AllocationId
      SubnetId: !Ref PublicSubnet1
      Tags:
        - Key: Name
          Value: ZeroTrust-NAT-1A

  NATGateway2:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NATGateway2EIP.AllocationId
      SubnetId: !Ref PublicSubnet2
      Tags:
        - Key: Name
          Value: ZeroTrust-NAT-1B

  # Route Tables
  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref ZeroTrustVPC
      Tags:
        - Key: Name
          Value: ZeroTrust-Public-RT

  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: AttachGateway
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1
      RouteTableId: !Ref PublicRouteTable

  PublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet2
      RouteTableId: !Ref PublicRouteTable

  PrivateRouteTable1:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref ZeroTrustVPC
      Tags:
        - Key: Name
          Value: ZeroTrust-Private-RT-1A

  PrivateRoute1:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable1
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NATGateway1

  PrivateSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1
      RouteTableId: !Ref PrivateRouteTable1

  PrivateRouteTable2:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref ZeroTrustVPC
      Tags:
        - Key: Name
          Value: ZeroTrust-Private-RT-1B

  PrivateRoute2:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable2
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NATGateway2

  PrivateSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet2
      RouteTableId: !Ref PrivateRouteTable2

  # Security Groups
  WebTierSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: ZeroTrust-Web-SG
      GroupDescription: Web tier security group with Zero Trust principles
      VpcId: !Ref ZeroTrustVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 443
          ToPort: 443
          CidrIp: 0.0.0.0/0
          Description: HTTPS from anywhere
        - IpProtocol: tcp
          FromPort: 80
          ToPort: 80
          CidrIp: 0.0.0.0/0
          Description: HTTP redirect to HTTPS
      Tags:
        - Key: Name
          Value: ZeroTrust-Web-SG
        - Key: Tier
          Value: web

  AppTierSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: ZeroTrust-App-SG
      GroupDescription: Application tier security group
      VpcId: !Ref ZeroTrustVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 8080
          ToPort: 8080
          SourceSecurityGroupId: !Ref WebTierSecurityGroup
          Description: App port from web tier
      Tags:
        - Key: Name
          Value: ZeroTrust-App-SG
        - Key: Tier
          Value: application

  DatabaseSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: ZeroTrust-DB-SG
      GroupDescription: Database tier security group
      VpcId: !Ref ZeroTrustVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 5432
          ToPort: 5432
          SourceSecurityGroupId: !Ref AppTierSecurityGroup
          Description: PostgreSQL from app tier
        - IpProtocol: tcp
          FromPort: 3306
          ToPort: 3306
          SourceSecurityGroupId: !Ref AppTierSecurityGroup
          Description: MySQL from app tier
      Tags:
        - Key: Name
          Value: ZeroTrust-DB-SG
        - Key: Tier
          Value: database

  # VPC Endpoints
  S3VPCEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      VpcId: !Ref ZeroTrustVPC
      ServiceName: !Sub 'com.amazonaws.${AWS::Region}.s3'
      VpcEndpointType: Gateway
      RouteTableIds:
        - !Ref PrivateRouteTable1
        - !Ref PrivateRouteTable2
      PolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Principal: '*'
            Action:
              - 's3:GetObject'
              - 's3:PutObject'
              - 's3:ListBucket'
            Resource: '*'
            Condition:
              StringEquals:
                'aws:PrincipalTag/ZeroTrustVerified': 'true'

  # CloudWatch Log Group for CloudTrail
  ZeroTrustLogGroup:
    Type: AWS::Logs::LogGroup
    Properties:
      LogGroupName: /aws/zerotrust/security-monitoring
      RetentionInDays: 90

  # CloudTrail for Zero Trust monitoring
  ZeroTrustCloudTrail:
    Type: AWS::CloudTrail::Trail
    Properties:
      TrailName: zerotrust-security-trail
      S3BucketName: !Ref CloudTrailBucket
      IncludeGlobalServiceEvents: true
      IsMultiRegionTrail: true
      EnableLogFileValidation: true
      CloudWatchLogsLogGroupArn: !Sub '${ZeroTrustLogGroup.Arn}:*'
      CloudWatchLogsRoleArn: !GetAtt CloudTrailLogsRole.Arn
      EventSelectors:
        - ReadWriteType: All
          IncludeManagementEvents: true
          DataResources:
            - Type: 'AWS::S3::Object'
              Values:
                - 'arn:aws:s3:::*/*'

  # S3 Bucket for CloudTrail
  CloudTrailBucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: !Sub 'zerotrust-cloudtrail-${AWS::AccountId}-${AWS::Region}'
      PublicAccessBlockConfiguration:
        BlockPublicAcls: true
        BlockPublicPolicy: true
        IgnorePublicAcls: true
        RestrictPublicBuckets: true
      BucketEncryption:
        ServerSideEncryptionConfiguration:
          - ServerSideEncryptionByDefault:
              SSEAlgorithm: AES256

  # CloudTrail Logs Role
  CloudTrailLogsRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Principal:
              Service: cloudtrail.amazonaws.com
            Action: sts:AssumeRole
      Policies:
        - PolicyName: CloudTrailLogsPolicy
          PolicyDocument:
            Version: '2012-10-17'
            Statement:
              - Effect: Allow
                Action:
                  - logs:PutLogEvents
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:DescribeLogStreams
                Resource: !Sub '${ZeroTrustLogGroup.Arn}:*'

  # SNS Topic for Alerts
  ZeroTrustAlertsTopic:
    Type: AWS::SNS::Topic
    Properties:
      TopicName: zerotrust-security-alerts
      DisplayName: Zero Trust Security Alerts
      Subscription:
        - Endpoint: !Ref NotificationEmail
          Protocol: email

  # Lambda function for Zero Trust validation
  ZeroTrustValidatorFunction:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: zerotrust-access-validator
      Runtime: python3.11
      Handler: index.lambda_handler
      Role: !GetAtt ZeroTrustValidatorRole.Arn
      Timeout: 300
      Environment:
        Variables:
          SNS_TOPIC_ARN: !Ref ZeroTrustAlertsTopic
          LOG_GROUP_NAME: !Ref ZeroTrustLogGroup
      Code:
        ZipFile: |
          import json
          import boto3

          def lambda_handler(event, context):
              # Zero Trust validation logic would be implemented here
              # This is a placeholder for the actual implementation

              return {
                  'statusCode': 200,
                  'body': json.dumps('Zero Trust validation completed')
              }

  # IAM Role for Lambda
  ZeroTrustValidatorRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Principal:
              Service: lambda.amazonaws.com
            Action: sts:AssumeRole
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
      Policies:
        - PolicyName: ZeroTrustValidatorPolicy
          PolicyDocument:
            Version: '2012-10-17'
            Statement:
              - Effect: Allow
                Action:
                  - sns:Publish
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                  - cloudwatch:PutMetricData
                Resource: '*'

Outputs:
  VPCId:
    Description: VPC ID for Zero Trust architecture
    Value: !Ref ZeroTrustVPC
    Export:
      Name: !Sub '${AWS::StackName}-VPC-ID'

  PrivateSubnetIds:
    Description: Private subnet IDs
    Value: !Join [',', [!Ref PrivateSubnet1, !Ref PrivateSubnet2]]
    Export:
      Name: !Sub '${AWS::StackName}-Private-Subnets'

  SecurityGroupIds:
    Description: Security group IDs
    Value: !Join [',', [!Ref WebTierSecurityGroup, !Ref AppTierSecurityGroup, !Ref DatabaseSecurityGroup]]
    Export:
      Name: !Sub '${AWS::StackName}-Security-Groups'

  CloudTrailArn:
    Description: CloudTrail ARN for monitoring
    Value: !GetAtt ZeroTrustCloudTrail.Arn
    Export:
      Name: !Sub '${AWS::StackName}-CloudTrail-ARN'

Best Practices and Recommendations

Implementation Guidelines

Phased Deployment: Implement Zero Trust incrementally, starting with identity management and expanding to network and application layers
Pilot Testing: Begin with non-production environments to validate policies and procedures before production deployment
User Training: Provide comprehensive training on new authentication and access procedures to minimize disruption
Backup Access: Maintain secure break-glass procedures for emergency access during system failures
Policy Validation: Regularly test and validate Zero Trust policies to ensure they meet security objectives without impeding operations
Integration Testing: Verify compatibility with existing applications and services before full deployment

Security Considerations

Identity Security:

Implement strong password policies with regular rotation requirements
Enable hardware-based MFA for all users, especially privileged accounts
Regularly audit and review user access permissions and role assignments
Implement just-in-time (JIT) access for administrative functions
Monitor and alert on unusual login patterns and access behaviors

Network Security:

Implement network segmentation with micro-perimeters around critical resources
Use encryption for all data in transit between network segments
Regularly update and patch network infrastructure components
Implement distributed denial-of-service (DDoS) protection mechanisms
Monitor network traffic for anomalous patterns and potential threats

Application Security:

Integrate Zero Trust principles into application design and development
Implement API gateway with authentication and authorization controls
Use encryption for all data at rest and in transit
Regularly scan applications for vulnerabilities and security misconfigurations
Implement runtime application self-protection (RASP) where appropriate

Performance Optimization

Access Performance:


# Optimize authentication flows for better user experience
class PerformanceOptimizedAuth:
    def __init__(self):
        self.cache_duration = 3600  # 1 hour cache for low-risk users
        self.risk_cache = {}

    def optimize_auth_flow(self, user_context: dict) -> dict:
        """Optimize authentication flow based on risk assessment"""

        user_id = user_context.get('user_id')
        current_time = datetime.now()

        # Check if user has recent low-risk assessment
        if user_id in self.risk_cache:
            cached_assessment = self.risk_cache[user_id]
            cache_age = (current_time - cached_assessment['timestamp']).seconds

            if (cached_assessment['risk_level'] == 'low' and
                cache_age < self.cache_duration):
                return {
                    'fast_path': True,
                    'mfa_required': False,
                    'session_duration': 'PT8H'
                }

        # Perform full risk assessment for new or high-risk users
        risk_assessment = self.assess_user_risk(user_context)

        # Cache low-risk assessments
        if risk_assessment['risk_level'] == 'low':
            self.risk_cache[user_id] = {
                'risk_level': 'low',
                'timestamp': current_time
            }

        return {
            'fast_path': False,
            'mfa_required': risk_assessment['risk_level'] in ['medium', 'high'],
            'session_duration': self.get_session_duration(risk_assessment['risk_level'])
        }

Network Performance:

Use VPC endpoints to reduce latency and improve security for AWS service access
Implement connection pooling and keep-alive mechanisms for frequent service calls
Optimize security group rules to minimize rule evaluation overhead
Use AWS Global Accelerator for improved performance across geographic regions
Monitor network latency and implement performance baselines

Compliance and Governance

Audit Requirements:

Maintain comprehensive logs of all authentication and authorization events
Implement automated compliance reporting for regulatory requirements
Regular third-party security assessments and penetration testing
Document all Zero Trust policies and procedures for audit purposes
Establish clear incident response procedures for security events

Governance Framework:

Establish Zero Trust steering committee with cross-functional representation
Define clear roles and responsibilities for Zero Trust implementation and maintenance
Create approval workflows for policy changes and exceptions
Implement regular policy review and update cycles
Establish metrics and KPIs for Zero Trust effectiveness measurement

Implementation Roadmap

Phase 1: Identity Foundation (Weeks 1-3)

Deploy AWS IAM Identity Center and configure external identity source integration
Create Zero Trust permission sets with conditional access policies
Implement multi-factor authentication requirements for all users
Configure session duration and re-authentication policies
Test identity integration with pilot user group
Establish identity monitoring and alerting mechanisms

Phase 2: Network Segmentation (Weeks 4-6)

Deploy Zero Trust VPC with segmented subnets and security groups
Implement network access control lists (NACLs) for additional security layers
Configure VPC endpoints for secure AWS service access
Deploy Network Load Balancers with SSL termination and WAF integration
Implement network monitoring and traffic analysis capabilities
Test network connectivity and performance with segmented architecture

Phase 3: Application Integration (Weeks 7-9)

Integrate applications with Zero Trust authentication and authorization
Implement API Gateway with Lambda authorizers for custom access control
Configure application-level encryption and secure communication protocols
Deploy application performance monitoring with security metrics
Implement just-in-time access mechanisms for administrative functions
Conduct application security testing and vulnerability assessments

Phase 4: Monitoring and Analytics (Weeks 10-12)

Deploy comprehensive logging and monitoring infrastructure
Implement behavioral analytics and anomaly detection systems
Configure automated alerting and incident response workflows
Establish security operations center (SOC) procedures and playbooks
Deploy compliance monitoring and automated reporting capabilities
Conduct tabletop exercises and incident response simulations

Phase 5: Optimization and Maturity (Weeks 13-16)

Analyze performance metrics and optimize authentication flows
Implement advanced machine learning capabilities for threat detection
Expand Zero Trust principles to all applications and services
Establish continuous improvement processes and feedback mechanisms
Complete comprehensive security assessment and penetration testing
Document lessons learned and best practices for future deployments

Additional Resources

Official Documentation

AWS IAM Identity Center User Guide - Comprehensive guide to AWS SSO implementation
AWS IAM Best Practices - IAM security best practices and recommendations
AWS VPC Security Best Practices - Network security implementation guidelines
AWS Well-Architected Security Pillar - Security architecture principles and practices

Tools and Frameworks

AWS Config Rules for Security - Automated compliance monitoring tools
AWS Security Hub - Centralized security findings management
AWS CloudFormation Security Templates - Infrastructure as Code security examples
Terraform AWS Modules - Reusable infrastructure components for security

Industry Reports and Research

NIST Zero Trust Architecture - Official NIST Zero Trust guidance and principles
2025 Zero Trust Security Report - Current Zero Trust adoption trends and challenges
AWS Security Best Practices Whitepaper - Comprehensive AWS security guidance
CIS AWS Foundations Benchmark - Security configuration benchmarks for AWS

Community Resources

AWS Security Blog - Latest AWS security updates and best practices
Zero Trust Exchange - Industry collaboration on Zero Trust implementation
AWS re:Inforce Conference - Annual AWS security conference and training
CloudSecurityAlliance - Cloud security research and best practices

Conclusion

Implementing Zero Trust architecture with AWS IAM represents a fundamental shift from traditional perimeter-based security to a model that assumes no implicit trust and continuously validates every access request. This comprehensive approach addresses the evolving threat landscape of 2025, where sophisticated attackers target cloud infrastructure with increasing frequency and success.

Key benefits of this Zero Trust implementation include:

Enhanced Security Posture: Continuous verification and least-privilege access significantly reduce attack surface and limit blast radius
Improved Compliance: Comprehensive logging and automated policy enforcement simplify regulatory compliance and audit processes
Operational Efficiency: Automated access decisions and self-service capabilities reduce administrative overhead while maintaining security
Scalable Architecture: Cloud-native implementation scales automatically with organizational growth and changing requirements
Risk Reduction: Proactive threat detection and automated response capabilities minimize the impact of security incidents

The success of Zero Trust implementation depends on careful planning, phased deployment, and continuous optimization based on operational experience and emerging threats. Organizations must balance security requirements with user experience to ensure adoption success while maintaining robust protection against evolving cyber threats.

For personalized guidance on implementing Zero Trust architecture in your AWS environment, connect with Jon Price on LinkedIn.
